[expo] 7. expo로 앱 만들기 - 화면 간 이동 navigation - 4

안녕하세요 프시케입니다.



이번 포스팅은 저번 포스팅에 이어 Screen4~6까지 화면을 정리하는 포스팅입니다.



저번 포스팅에선 Screen4~6까지  Top-Tab을 사용하여 화면 구성을 했었는데



Top-Tab 대신 Stack navigation을 사용하여 화면을 구성하는게 좋다는 판단으로 변경하게 되었습니다.

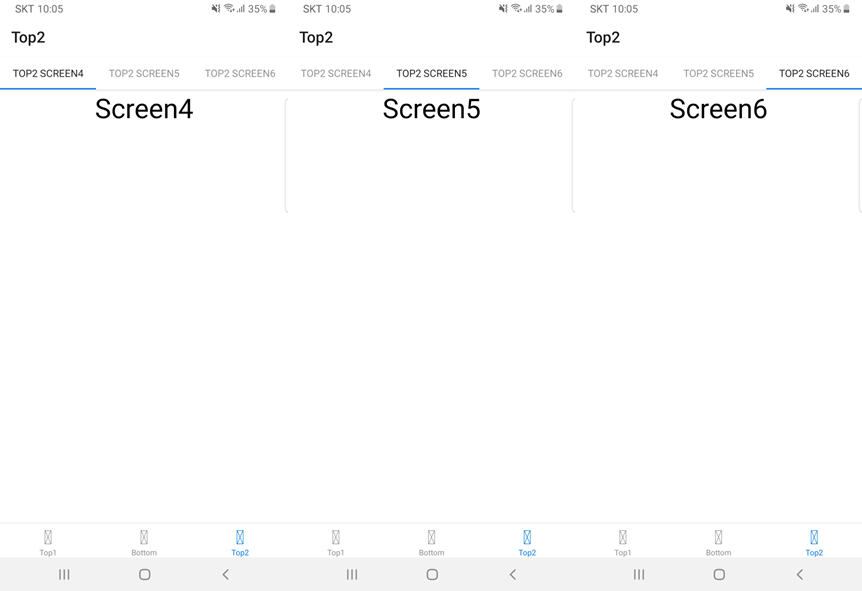

지금까지 만들어진 화면을 보시면





Top-Tab의 기능들이 없다는 생각에 변경하게 되었습니다.



navigation.js 파일을 수정합니다.



Top2는 삭제하고 SettingScreen을 추가하였습니다.

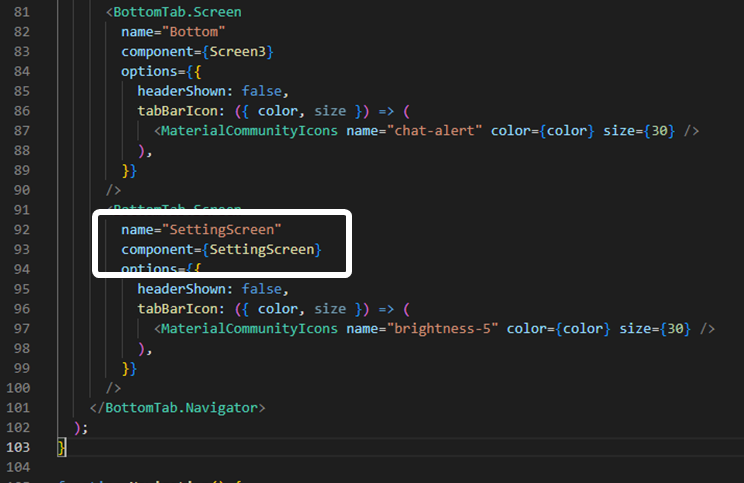

그리고 BottomStack을 수정하였습니다.







해당 Navigation.js의 전체 소스입니다.



import React from 'react';

import { createStackNavigator } from '@react-navigation/stack';

import { NavigationContainer } from "@react-navigation/native";

import { createMaterialTopTabNavigator } from '@react-navigation/material-top-tabs';

import { createBottomTabNavigator } from "@react-navigation/bottom-tabs";

import MaterialCommunityIcons from 'react-native-vector-icons/MaterialCommunityIcons';

import Splash from './screens/splash';

import Signin from './screens/signin';

import Signup from './screens/signup';

import KaKaoLogin from './screens/kakaoLogin';

//import Home from './screens/home';

import Screen1 from './screens/screen1';

import Screen2 from './screens/screen2';

import Screen3 from './screens/screen3';

import Screen4 from './screens/screen4';

import Screen5 from './screens/screen5';

import Screen6 from './screens/screen6';

const TopTab = createMaterialTopTabNavigator();

function Top1() {

  return (

    <TopTab.Navigator screenOptions={{ tabBarActiveTintColor: 'purple' }}

    >

      <TopTab.Screen name="Top1 Screen1" component={Screen1}  />

      <TopTab.Screen name="Top1 Screen2" component={Screen2}  />

    </TopTab.Navigator>

  )

}

const Stack = createStackNavigator();

function StackScreen() {

  return (

    <Stack.Navigator

      initialRouteName="Splash"

    >

      <Stack.Screen name="Splash" component={Splash} options={{headerShown: false}} />

      <Stack.Screen name="Signin" component={Signin} options={{headerShown: false}} />

      <Stack.Screen name="KaKaoLogin" component={KaKaoLogin} options={{headerShown: false}} />

      <Stack.Screen name="Signup" component={Signup} options={{headerShown: false}} />

      <Stack.Screen name="Home" component={BottomStack} options={{headerShown: false}} />

    </Stack.Navigator>

  );

}

function SettingScreen() {

  return (

    <Stack.Navigator

      initialRouteName="Screen4"

    >

      <Stack.Screen name="Screen4" component={Screen4} options={{headerShown: false}} />

      <Stack.Screen name="Screen5" component={Screen5} options={{headerShown: false}} />

      <Stack.Screen name="Screen6" component={Screen6} options={{headerShown: false}} />

    </Stack.Navigator>

  );

}

const BottomTab = createBottomTabNavigator();

function BottomStack() {

  return (

    <BottomTab.Navigator

      screenOptions={{

        headerShown : false

      }}

    >

      <BottomTab.Screen

        name="Top1"

        component={Top1}

        options={{

          headerShown: false,

          tabBarIcon: ({ color, size }) => (

            <MaterialCommunityIcons name="home" color={color} size={30} />

          ),

        }}

      />

      <BottomTab.Screen

        name="Bottom"

        component={Screen3}

        options={{

          headerShown: false,

          tabBarIcon: ({ color, size }) => (

            <MaterialCommunityIcons name="chat-alert" color={color} size={30} />

          ),

        }}

      />

      <BottomTab.Screen

        name="SettingScreen"

        component={SettingScreen}

        options={{

          headerShown: false,

          tabBarIcon: ({ color, size }) => (

            <MaterialCommunityIcons name="brightness-5" color={color} size={30} />

          ),

        }}

      />

    </BottomTab.Navigator>

  );

}

function Navigation() {

  return (

    <NavigationContainer>

      <StackScreen>

        <BottomStack />

      </StackScreen>

    </NavigationContainer>

  );

}

export default Navigation;





그리고 Screen4~6까지 버튼을 추가했습니다.



Screen4.js 소스입니다.



import React from "react";

import { View, Text, StyleSheet, TouchableOpacity } from "react-native";

import { useNavigation } from "@react-navigation/native";

const Screen4 = () => {

  const navigation = useNavigation();

  return (

    <View style={Styles.container}>

      <Text style={Styles.HomeText}>Screen4</Text>

      <TouchableOpacity

        onPress={() => navigation.navigate("Screen5", { screen: "Screen5" })}

        style={Styles.NextBottom}

      >

        <Text style={Styles.BottomText}>Screen5</Text>

      </TouchableOpacity>

      <TouchableOpacity

        onPress={() => navigation.navigate("Screen6", { screen: "Screen6" })}

        style={Styles.NextBottom}

      >

        <Text style={Styles.BottomText}>Screen6</Text>

      </TouchableOpacity>

    </View>

  )

}

export default Screen4;

const Styles = StyleSheet.create({

  container: {

    flex: 1,

    backgroundColor: '#fff',

  },

  HomeText: {

    fontSize: 35,

    textAlign: "center",

  },

  NextBottom: {

    backgroundColor: "purple",

    padding: 10,

    marginTop: "20%",

    width: "50%",

    alignSelf: "center",

    borderRadius: 10,

  },

  BottomText: {

    fontSize: 15,

    color: 'white',

    textAlign: "center",

  },

})

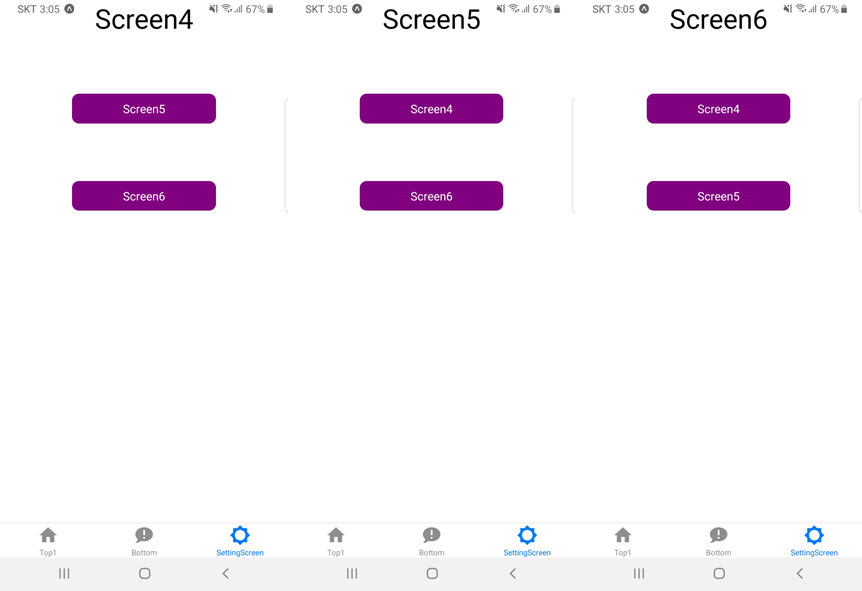

해당 소스로 만들어진 화면들입니다.









이번 포스팅은 여기서 마치겠습니다.
